ChemicalBook
English   Japanese   Germany   Korea

768-94-5

金剛烷胺(768-94-5)Raman光譜

產(chǎn)品名稱:金剛烷胺

CAS:768-94-5

分子式:C10H17N

分子量: 151.25

InChI:InChI=1S/C10H17N/c11-10-4-7-1-8(5-10)3-9(2-7)6-10/h7-9H,1-6,11H2

InChIKey: DKNWSYNQZKUICI-UHFFFAOYSA-N

Smiles:C12(N)CC3CC(CC(C3)C1)C2

  • 圖譜
    Mass

    MS-NW-6197
1-adamantanamine
C10H17N             (Mass of molecular ion:    151)


       Source Temperature: 260 °C
   Sample Temperature: 190 °C
   Reservoir, 75 eV


          18.0       2.2
      27.0       1.7
      28.0       1.7
      29.0       1.2
      30.0       2.4
      39.0       3.3
      41.0       5.0
      42.0       3.8
      53.0       1.6
      54.0       1.0
      55.0       1.2
      56.0       1.0
      57.0      11.6
      58.0       4.3
      65.0       1.2
      67.0       1.9
      77.0       3.3
      79.0       2.2
      80.0       1.2
      81.0       1.4
      82.0       1.2
      91.0       2.1
      93.0       2.5
      94.0     100.0
      95.0       9.5
     108.0       5.0
     151.0      17.5
     152.0       2.2

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C10 H17 N 0.043 g : 0.5 ml CDCl3
    1-adamantanamine
    ChemicalStructure
        Assign.     Shift(ppm)

      A             2.05
      B          1.76 to 1.42
      C             1.28


         Hz     ppm     Int.


        183.38   2.048    180
    157.38   1.758     25
    157.00   1.754     25
    156.44   1.747     25
    155.69   1.739     23
    154.81   1.729     22
    147.75   1.650    407
    142.69   1.594   1000
    139.75   1.561    747
    132.19   1.476     27
    131.81   1.472     28
    128.31   1.433     28
    114.25   1.276    667

in CDCl3

  • 圖譜

KBr disc

  • 圖譜

liquid film

  • 圖譜

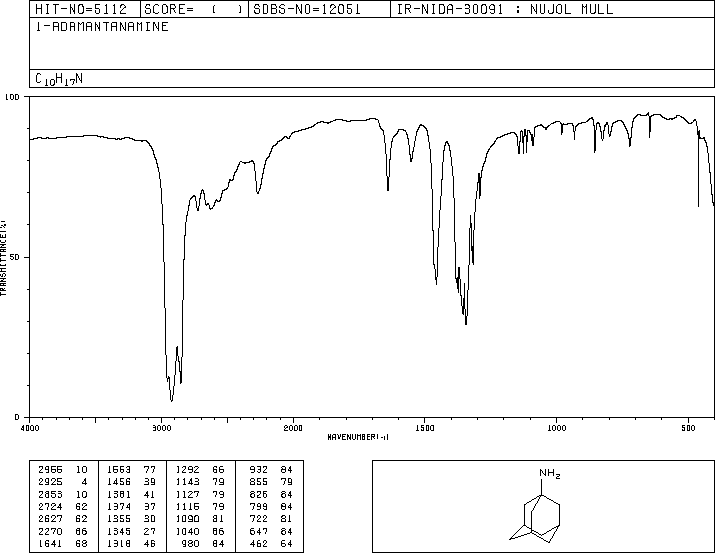

nujol mull

  • 圖譜

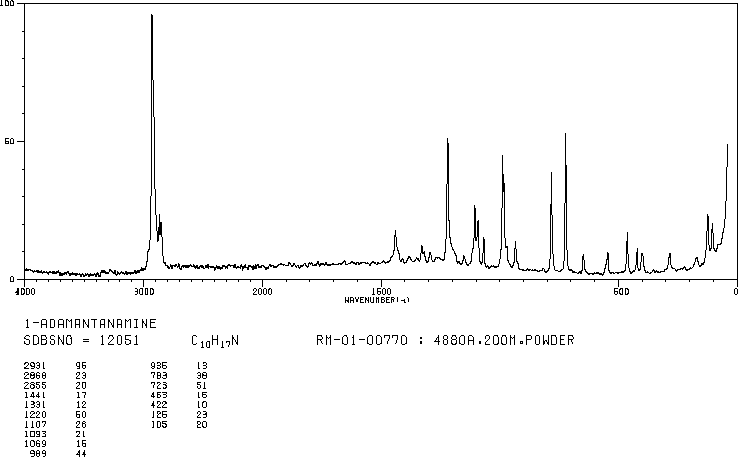

4880 A,200 M,powder

  • 圖譜

×
