ChemicalBook
English   Japanese   Germany   Korea

1438-91-1

糠基甲基硫醚(1438-91-1)質(zhì)譜(MS)

產(chǎn)品名稱:糠基甲基硫醚

CAS:1438-91-1

分子式:C6H8OS

分子量: 128.19

InChI:InChI=1S/C6H8OS/c1-8-5-6-3-2-4-7-6/h2-4H,5H2,1H3

InChIKey: SKSFHXVDHVKIBN-UHFFFAOYSA-N

Smiles:O1C=CC=C1CSC

  • 圖譜
    Mass

    MS-NW-8595
furfuryl methyl sulfide
C6H8OS              (Mass of molecular ion:    128)


       Source Temperature: 250 °C
   Sample Temperature: 140 °C
   Reservoir, 75 eV


          26.0       1.1
      27.0      10.0
      29.0       1.5
      38.0       1.3
      39.0       3.5
      45.0       8.1
      46.0       1.6
      47.0       2.9
      50.0       2.9
      51.0       5.8
      52.0       4.1
      53.0      39.1
      54.0       2.0
      58.0       1.3
      61.0       1.5
      65.0       1.0
      81.0     100.0
      82.0       6.0
      84.0       1.2
      85.0       1.6
     127.0       1.1
     128.0      39.1
     129.0       3.0
     130.0       1.9

90 MHz in CDCl3

  • 圖譜

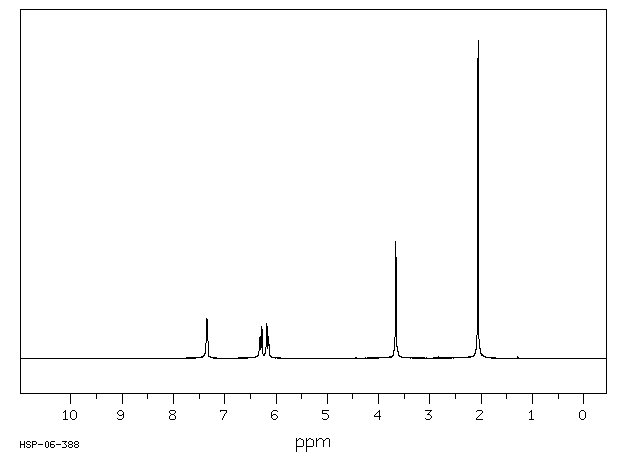

    1H NMR 89.56 MHz
    C6 H8 O S 0.05 ml : 0.5 ml CDCl3
    furfuryl methyl sulfide
    ChemicalStructure
        Assign.     Shift(ppm)

      A             7.344
      B             6.290
      C             6.166
      D             3.664
      E             2.059


         Hz     ppm     Int.


        659.13   7.360    125
    658.25   7.350    121
    657.25   7.339    124
    656.38   7.329    110
    566.19   6.322     66
    564.31   6.301     70
    563.06   6.287    100
    561.19   6.267     92
    554.50   6.192     61
    553.81   6.184    110
    553.00   6.175    101
    552.25   6.167     52
    550.63   6.149     68
    549.88   6.140     61
    549.06   6.131     31
    328.19   3.665    368
    184.44   2.060   1000

in CDCl3

  • 圖譜

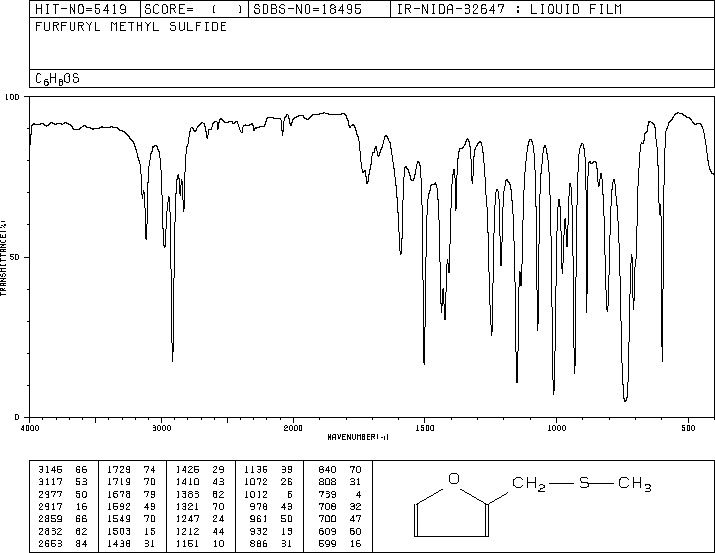

liquid film

  • 圖譜

×
