ChemicalBook
English   Japanese   Germany   Korea

870-63-3

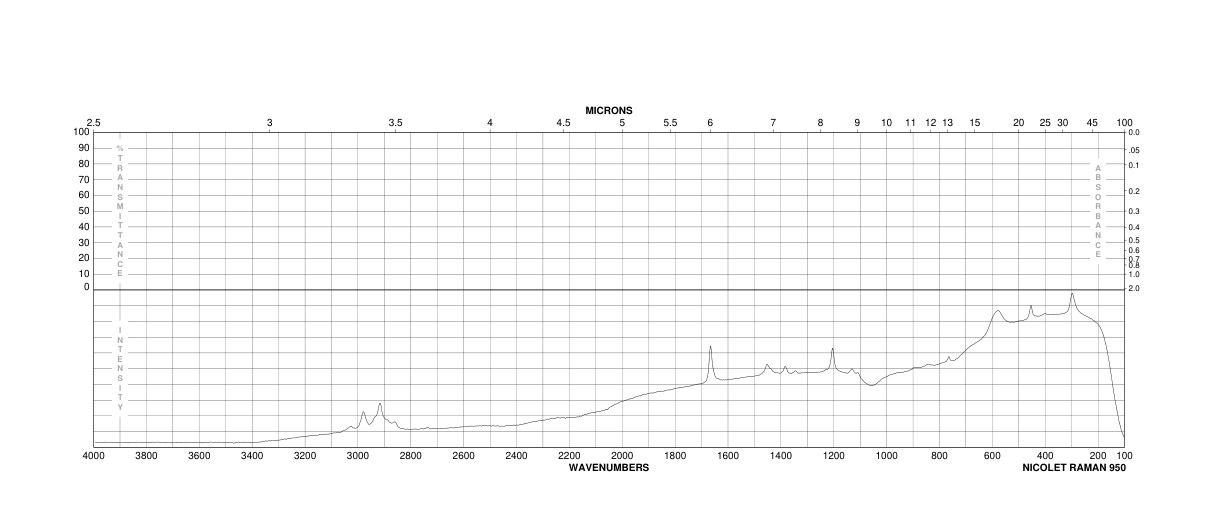

1-溴-3-甲基-2-丁烯(870-63-3)Raman光譜

產(chǎn)品名稱:1-溴-3-甲基-2-丁烯

CAS:870-63-3

分子式:C5H9Br

分子量: 149.03

InChI:InChI=1S/C5H9Br/c1-5(2)3-4-6/h3H,4H2,1-2H3

InChIKey: LOYZVRIHVZEDMW-UHFFFAOYSA-N

Smiles:C(Br)/C=C(/C)\C

  • 圖譜
    Mass

    MS-IW-1592
1-bromo-3-methyl-2-butene
C5H9Br              (Mass of molecular ion:    148)


       Source Temperature: 240 °C
   Sample Temperature: 160 °C
   Reservoir, 75 eV


          26.0       1.3
      27.0      10.6
      28.0       2.0
      29.0       3.8
      38.0       2.3
      39.0      17.6
      40.0       4.6
      41.0      82.0
      42.0       5.2
      43.0       7.6
      50.0       2.3
      51.0       3.7
      52.0       1.8
      53.0      14.8
      54.0       3.8
      55.0       4.1
      59.0       2.0
      65.0       1.9
      67.0      12.5
      68.0       8.4
      69.0     100.0
      70.0       6.6
      71.0       2.0
      81.0       2.7
      93.0       1.4
      95.0       1.6
      97.0       1.7
     121.0       1.5
     137.0       2.4
     148.0       6.8
     149.0      10.1
     150.0       7.1
     151.0       9.6

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C5 H9 Br 0.02 ml : 0.5 ml CDCl3
    1-bromo-3-methyl-2-butene
    ChemicalStructure
        Assign.     Shift(ppm)

      A             5.52
      B             4.015
      C             1.78
      D             1.74

     ASSIGNED BY C-H COSY.


         Hz     ppm     Int.


        363.63   4.061    406
    355.19   3.966    360
    159.63   1.783   1000
    156.06   1.743    968
    155.69   1.739    947
    154.69   1.728    961

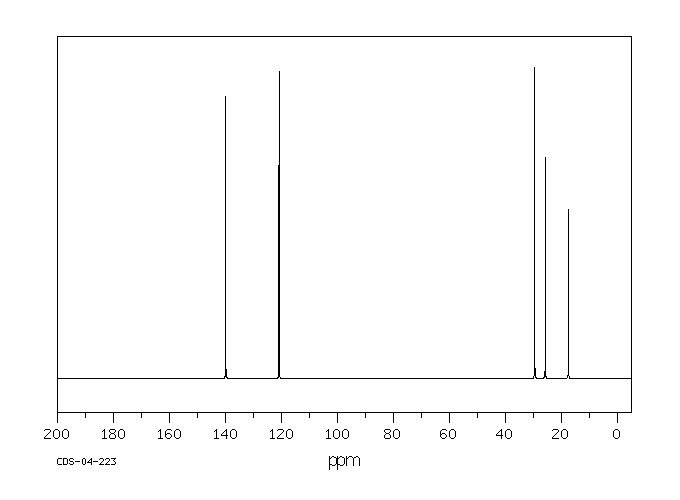

in CDCl3

  • 圖譜

CCl4 solution

  • 圖譜

liquid film

  • 圖譜

  • 圖譜

×
