79-06-1

丙烯酰胺(79-06-1)質(zhì)譜(MS)

產(chǎn)品名稱(chēng):丙烯酰胺

CAS:79-06-1

分子式:C3H5NO

分子量: 71.08

InChI:InChI=1S/C3H5NO/c1-2-3(4)5/h2H,1H2,(H2,4,5)

InChIKey: HRPVXLWXLXDGHG-UHFFFAOYSA-N

Smiles:C(N)(=O)C=C

  • 圖譜

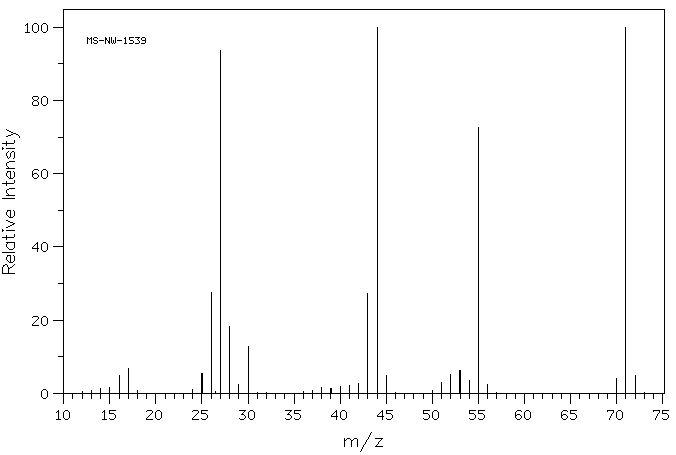

    Mass

    MS-NW-1539
acrylamide
C3H5NO              (Mass of molecular ion:     71)


       Source Temperature: 240 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV


          14.0       1.2
      15.0       1.6
      16.0       5.0
      17.0       6.8
      24.0       1.0
      25.0       5.3
      26.0      27.5
      27.0      93.8
      28.0      18.4
      29.0       2.4
      30.0      12.9
      38.0       1.7
      39.0       1.4
      40.0       2.0
      41.0       2.1
      42.0       2.7
      43.0      27.2
      44.0     100.0
      45.0       4.9
      51.0       3.0
      52.0       5.2
      53.0       6.2
      54.0       3.5
      55.0      72.7
      56.0       2.5
      70.0       4.1
      71.0      99.9
      72.0       4.9

90 MHz in D2O

  • 圖譜

    1H NMR 89.56 MHz
    C3 H5 N O 0.045 g : 0.5 ml D2O
    acrylamide
    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.32
      B             6.24
      C             5.817

     THE SOLVENT SIGNAL REMOVED


         Hz     ppm     Int.


        583.06   6.511     25
    566.06   6.321    410
    563.00   6.287    444
    558.56   6.237   1000
    546.00   6.097     70
    540.25   6.033     46
    527.50   5.890    339
    523.06   5.841    242
    520.19   5.809    217
    515.75   5.759    194

in D2O

  • 圖譜

KBr disc

  • 圖譜

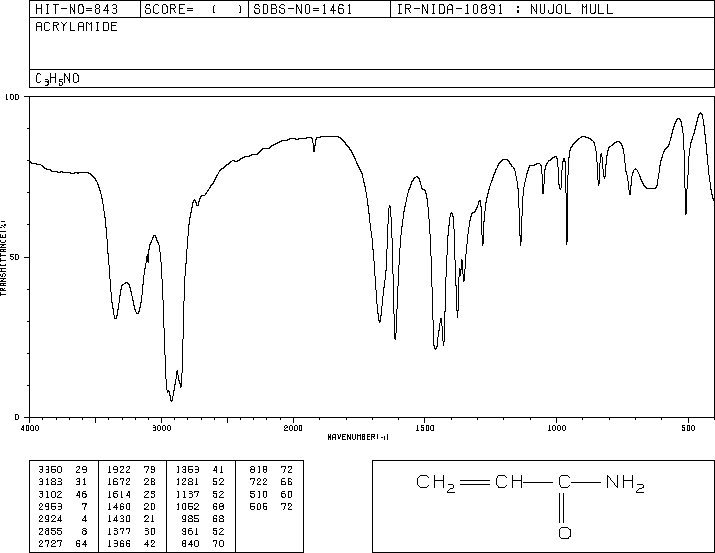

nujol mull

  • 圖譜

  • 圖譜

×
