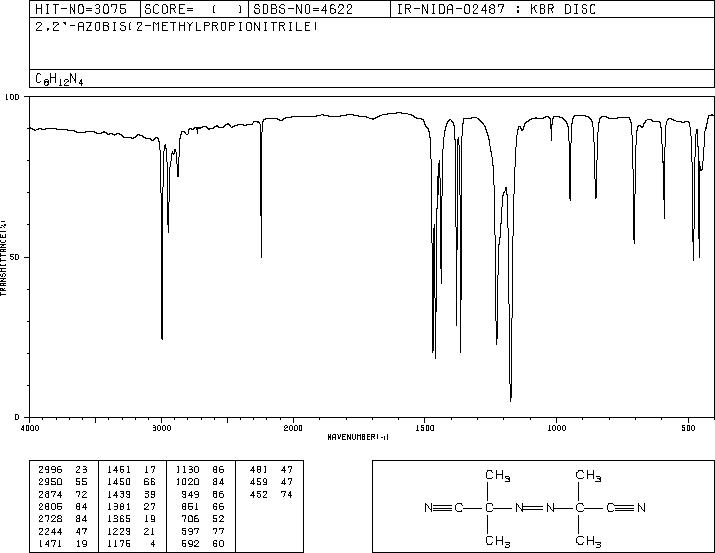

偶氮二異丁腈(78-67-1)紅外圖譜(IR3)
InChI:InChI=1S/C8H12N4/c1-7(2,5-9)11-12-8(3,4)6-10/h1-4H3
InChIKey: OZAIFHULBGXAKX-UHFFFAOYSA-N
Smiles:N(C(C)(C)C#N)=NC(C)(C)C#N
-
Mass
MS-NW-1814
2,2'-azobis(2-methylpropionitrile)
C8H12N4 (Mass of molecular ion: 164)
Source Temperature: 250 °C
Sample Temperature: 180 °C
Reservoir, 75 eV
15.0 3.2
26.0 1.9
27.0 8.2
28.0 26.6
29.0 1.4
37.0 1.5
38.0 2.5
39.0 15.3
40.0 4.1
41.0 34.7
42.0 26.6
43.0 1.9
51.0 2.9
52.0 7.4
53.0 3.8
54.0 20.3
55.0 1.5
64.0 1.7
65.0 1.0
66.0 3.1
67.0 4.1
68.0 40.7
69.0 100.0
70.0 4.9
80.0 1.7
94.0 2.6
121.0 2.6
-

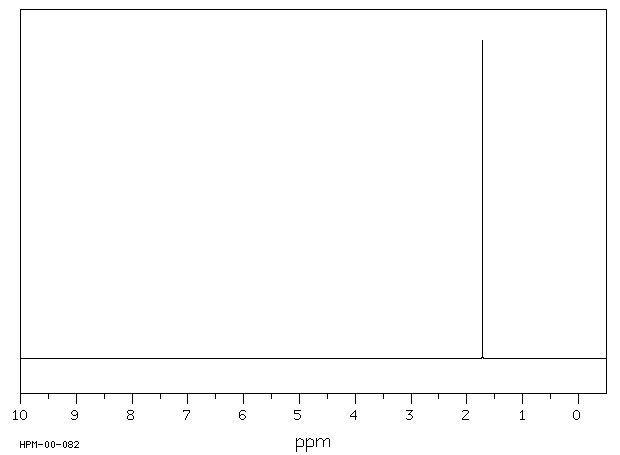

| 1H NMR |
300 MHz |
| C8 H12 N4
|
0.048 g : 0.5 ml CDCl3
|
| 2,2'-azobis(2-methylpropionitrile)
|
 |
Parameter ppm Hz
D(A) 1.724
|
Hz ppm Int.
517.20 1.724 1000
UV IRRAD. IN POWDER STATE, 77K
UV PHOTOLYSIS
