返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>487-68-3更多圖譜> 2,4,6-三甲基苯甲醛(487-68-3)Raman光譜

487-68-3

2,4,6-三甲基苯甲醛(487-68-3)Raman光譜

產(chǎn)品名稱:2,4,6-三甲基苯甲醛

CAS:487-68-3

分子式:C10H12O

分子量: 148.2

InChI:InChI=1S/C10H12O/c1-7-4-8(2)10(6-11)9(3)5-7/h4-6H,1-3H3

InChIKey: HIKRJHFHGKZKRI-UHFFFAOYSA-N

Smiles:C(=O)C1=C(C)C=C(C)C=C1C

  • 圖譜

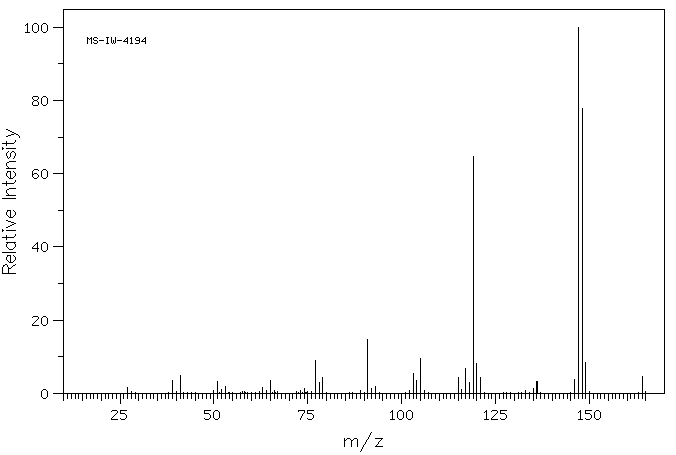

    Mass

    MS-IW-4194
2,4,6-trimethylbenzaldehyde
C10H12O             (Mass of molecular ion:    148)


       Source Temperature: 230 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          27.0       1.5
      39.0       3.6
      41.0       5.0
      51.0       3.3
      52.0       1.0
      53.0       2.0
      63.0       1.6
      65.0       3.5
      74.0       1.3
      77.0       8.9
      78.0       2.9
      79.0       4.2
      91.0      14.8
      92.0       1.4
      93.0       1.8
     103.0       5.4
     104.0       3.5
     105.0       9.5
     115.0       4.2
     116.0       1.0
     117.0       6.9
     118.0       2.9
     119.0      64.6
     120.0       8.1
     121.0       4.4
     135.0       1.2
     136.0       3.3
     146.0       3.8
     147.0     100.0
     148.0      77.7
     149.0       8.3
     164.0       4.6

400 MHz in CDCl3

  • 圖譜

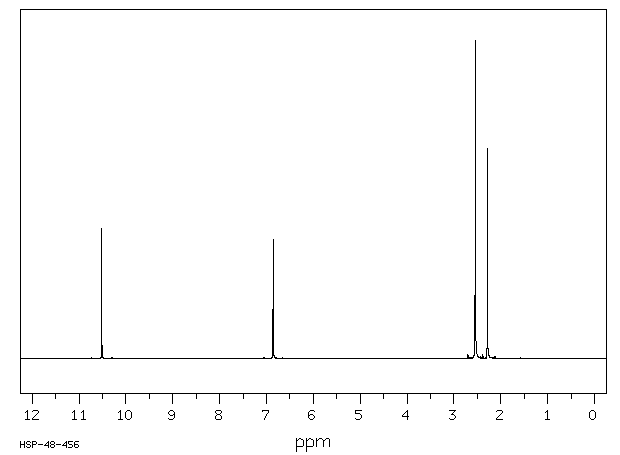

    1H NMR 399.65 MHz
    C10 H12 O 0.05 ml : 0.5 ml CDCl3
    2,4,6-trimethylbenzaldehyde
    ChemicalStructure
        Assign.     Shift(ppm)

      A            10.515
      B             6.856
      C             2.542
      D             2.284


         Hz     ppm     Int.


       4202.57  10.516    408
   2740.17   6.857    373
   1016.24   2.543   1000
    912.93   2.285    662

in CDCl3

  • 圖譜

liquid film

  • 圖譜

4880 A,200 M,liquid

  • 圖譜

×
