返回ChemicalBook首頁>CAS數據庫列表>2208-05-1更多圖譜> 苯甲酸二甲基氨基乙酯(2208-05-1)核磁圖(1HNMR)

2208-05-1

苯甲酸二甲基氨基乙酯(2208-05-1)核磁圖(1HNMR)

產品名稱:苯甲酸二甲基氨基乙酯

CAS:2208-05-1

分子式:C11H15NO2

分子量: 193.24

InChI:InChI=1S/C11H15NO2/c1-12(2)8-9-14-11(13)10-6-4-3-5-7-10/h3-7H,8-9H2,1-2H3

InChIKey: KJSGODDTWRXQRH-UHFFFAOYSA-N

Smiles:C(OCCN(C)C)(=O)C1=CC=CC=C1

  • 圖譜
    Mass

    MS-NW-7591
2-(dimethylamino)ethyl benzoate
C11H15NO2           (Mass of molecular ion:    193)


       Source Temperature: 260 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV


          30.0       2.0
      42.0       4.7
      43.0       1.6
      44.0       1.4
      50.0       1.1
      51.0       3.7
      56.0       2.3
      57.0       1.5
      58.0     100.0
      59.0       3.6
      71.0      17.9
      72.0       1.6
      77.0       7.8
     105.0       6.1

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C11 H15 N O2 0.05 ml : 0.5 ml CDCl3
    2-(dimethylamino)ethyl benzoate
    ChemicalStructure
        Assign.     Shift(ppm)

      A             8.05
      B             7.53
      C             7.40
      D             4.423
      E             2.699
      F             2.324

     B AND C WERE CONFIRMED BY LAOCN PROGRAM.


         Hz     ppm     Int.


        725.88   8.105     63
    724.25   8.087     71
    722.75   8.071     37
    721.88   8.061     32
    720.38   8.044     33
    718.31   8.021     70
    716.13   7.997     86
    675.50   7.543     33
    671.75   7.501     61
    669.75   7.479    156
    667.69   7.456     70
    665.81   7.435     34
    663.88   7.413     44
    662.25   7.395     68
    402.00   4.489     80
    396.25   4.425    155
    390.31   4.359     93
    247.56   2.765     79
    241.75   2.700    132
    235.88   2.634     69
    208.19   2.325   1000

in CDCl3

  • 圖譜

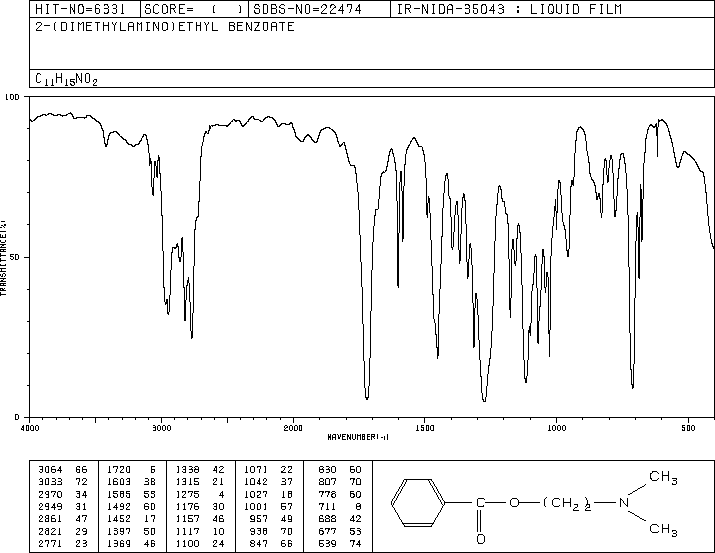

liquid film

  • 圖譜

×
