19961-27-4

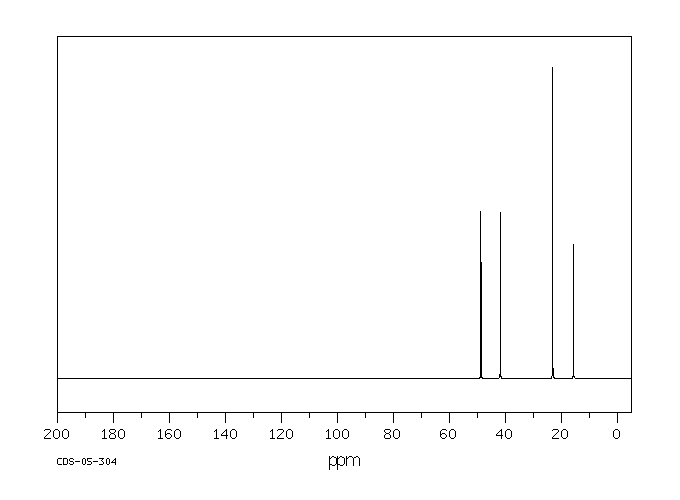

N-乙基異丙基胺(19961-27-4)核磁圖(13CNMR)

產(chǎn)品名稱:N-乙基異丙基胺

CAS:19961-27-4

分子式:C5H13N

分子量: 87.16

InChI:InChI=1S/C5H13N/c1-4-6-5(2)3/h5-6H,4H2,1-3H3

InChIKey: RIVIDPPYRINTTH-UHFFFAOYSA-N

Smiles:CC(NCC)C

  • 圖譜
    Mass

    MS-NW-3231
N-ethylisopropylamine
C5H13N              (Mass of molecular ion:     87)


       Source Temperature: 280 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV


          15.0       3.8
      18.0       6.6
      26.0       1.0
      27.0       8.7
      28.0       8.2
      29.0       5.9
      30.0      32.0
      39.0       4.0
      40.0       1.1
      41.0       8.1
      42.0      10.8
      43.0       7.6
      44.0      64.2
      45.0       1.9
      56.0       3.1
      57.0       1.1
      58.0       5.2
      70.0       1.9
      72.0     100.0
      73.0       4.9
      86.0       5.5
      87.0       7.9

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C5 H13 N 0.04 ml : 0.5 ml CDCl3
    N-ethylisopropylamine
    ChemicalStructure
        Assign.     Shift(ppm)

      A             2.788
      B             2.636
      C             1.105
      D             1.054
      E             0.88

     J(A,D)=6.3HZ. J(B,C)=7.0HZ.


         Hz     ppm     Int.


        264.06   2.949     24
    257.75   2.878     56
    251.56   2.809     76
    247.63   2.765     53
    247.19   2.761     50
    245.25   2.739     67
    240.13   2.682    199
    239.13   2.671     49
    233.00   2.602    217
    226.19   2.526     69
    106.06   1.185    217
     99.06   1.107    492
     97.50   1.089   1000
     91.25   1.019    946
     79.19   0.885     92

in CDCl3

  • 圖譜

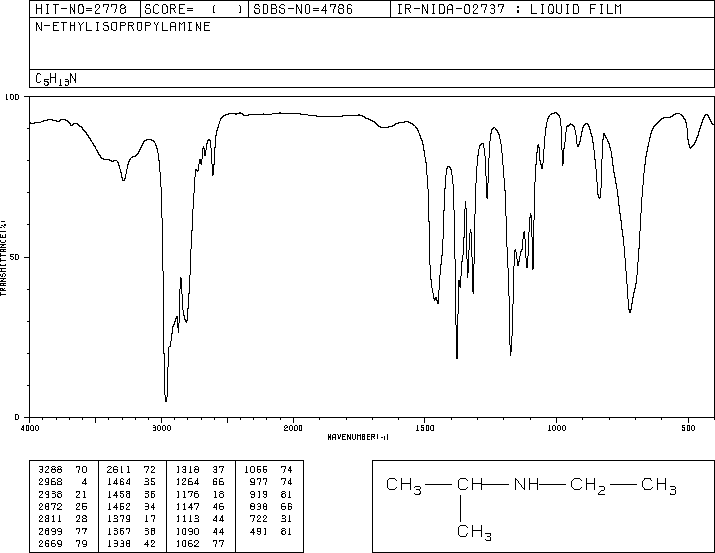

liquid film

  • 圖譜

  • 圖譜

×
