隱色孔雀綠(129-73-7)紅外圖譜(IR1)

產(chǎn)品名稱(chēng):隱色孔雀綠

CAS:129-73-7

分子式:C23H26N2

分子量: 330.47

InChI:InChI=1S/C23H26N2/c1-24(2)21-14-10-19(11-15-21)23(18-8-6-5-7-9-18)20-12-16-22(17-13-20)25(3)4/h5-17,23H,1-4H3

InChIKey: WZKXBGJNNCGHIC-UHFFFAOYSA-N

Smiles:C(C1=CC=C(N(C)C)C=C1)(C1=CC=C(N(C)C)C=C1)C1=CC=CC=C1

Mass

MS-NW-2321
4,4'-benzylidenebis(N,N-dimethylaniline)
C23H26N2            (Mass of molecular ion:    330)

   Source Temperature: 230 °C
   Sample Temperature: 170 °C
   Direct, 75 eV

      15.0       1.0
      17.0       2.4
      18.0      11.5
      27.0       1.2
      28.0       5.6
      39.0       1.4
      42.0       4.0
      44.0       1.3
      51.0       1.5
      63.0       1.0
      77.0       2.4
      78.0       1.1
      91.0       3.1
     103.5       1.1
     104.0       1.3
     105.0       1.8
     106.0       1.0
     115.0       1.3
     118.0       5.9
     118.5       1.6
     119.0       1.8
     120.0       3.2
     121.0       1.7
     125.0       1.0
     126.0      12.3
     126.5       3.9
     134.0       3.3
     141.5       1.3
     142.0       1.0
     152.0       2.5
     153.0       1.8
     163.0       1.1
     164.0       3.4
     164.5       1.1
     165.0      21.5
     165.5       2.1
     166.0       6.8
     167.0       2.4
     192.0       1.5
     193.0       2.3
     194.0       7.5
     195.0       2.2
     196.0       1.3
     208.0      11.1
     209.0      29.8
     210.0      26.1
     211.0       4.6
     221.0       1.4
     237.0      13.2
     238.0       3.4
     239.0       2.5
     241.0       1.2
     252.0       2.3
     253.0     100.0
     254.0      19.2
     255.0       1.9
     286.0       7.7
     287.0       1.8
     313.0       2.3
     314.0       1.1
     316.0       1.0
     329.0      15.2
     330.0      69.3
     331.0      17.9
     332.0       2.4

90 MHz in CDCl3

¹H NMR	89.56 MHz
C₂₃ H₂₆ N₂	0.044 g : 0.5 ml CDCl₃

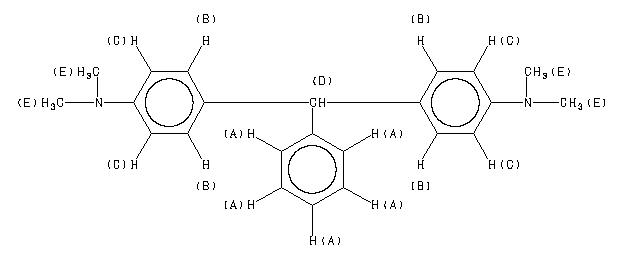

4,4'-benzylidenebis(N,N-dimethylaniline)

    Assign.     Shift(ppm)

      A          7.38 to 6.99
      B             6.97
      C             6.65
      D             5.37
      E             2.882

     Hz     ppm     Int.

    643.38   7.184     89
    642.19   7.171     47
    641.06   7.158     68
    629.81   7.033     48
    629.25   7.027     58
    623.19   6.959     21
    622.69   6.953     22
    620.88   6.933     96
    620.31   6.927     85
    599.25   6.692    108
    596.94   6.666     28
    590.31   6.592     60
    480.31   5.363     28
    258.13   2.883   1000

in CDCl3
