N-苯基乙醇胺(122-98-5)核磁圖(¹HNMR)

產(chǎn)品名稱:N-苯基乙醇胺

CAS:122-98-5

分子式:C8H11NO

分子量: 137.18

InChI:InChI=1S/C8H11NO/c10-7-6-9-8-4-2-1-3-5-8/h1-5,9-10H,6-7H2

InChIKey: MWGATWIBSKHFMR-UHFFFAOYSA-N

Smiles:C(O)CNC1=CC=CC=C1

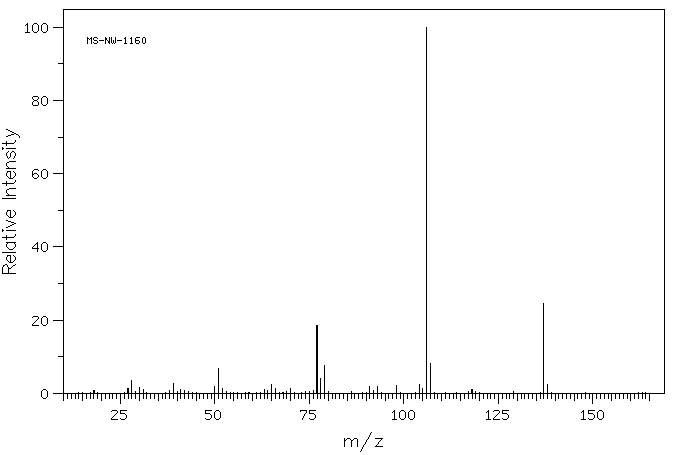

Mass

MS-NW-1160
2-anilinoethanol
C8H11NO             (Mass of molecular ion:    137)

   Source Temperature: 240 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV

      27.0       1.2
      28.0       3.5
      30.0       1.5
      31.0       1.0
      39.0       2.6
      41.0       1.0
      50.0       1.9
      51.0       6.8
      52.0       1.4
      63.0       1.0
      65.0       2.4
      66.0       1.3
      70.0       1.2
      77.0      18.6
      78.0       4.1
      79.0       7.6
      91.0       1.8
      93.0       1.9
      98.0       2.1
     104.0       2.3
     105.0       1.3
     106.0     100.0
     107.0       8.2
     118.0       1.0
     137.0      24.6
     138.0       2.4

90 MHz in CDCl3

¹H NMR	89.56 MHz
C₈ H₁₁ N O	0.04 ml : 0.5 ml CDCl₃
2-anilinoethanol

    Assign.     Shift(ppm)

      A             7.16
      B             6.69
      C             6.66
      D             3.73
      E             3.24
      F             3.22

     Hz     ppm     Int.

    650.61   7.265    223
    649.84   7.256    275
    649.24   7.250    164
    647.88   7.235    149
    645.74   7.211    223
    644.03   7.192    194
    642.83   7.178    632
    642.07   7.170    536
    641.21   7.160    431
    636.34   7.106    264
    634.63   7.087    596
    634.12   7.081    484
    609.94   6.811    154
    608.65   6.797    312
    607.54   6.784    250
    601.39   6.715    393
    599.51   6.694    174
    598.06   6.678    186
    596.61   6.662    671
    595.32   6.648    858
    593.02   6.622    262
    589.94   6.588    201
    589.26   6.580    270
    588.06   6.567    527
    586.87   6.553    431
    339.92   3.796    399
    339.40   3.790    393
    334.88   3.740    925
    333.51   3.724    461
    329.32   3.678    755
    292.66   3.268    882
    290.70   3.246    381
    290.10   3.240    388
    288.39   3.221    681
    287.11   3.206   1000
    282.50   3.155    440

in CDCl3
