ChemicalBook
English   Japanese   Germany   Korea

1120-16-7

月桂酰胺(1120-16-7)紅外圖譜(IR3)

產(chǎn)品名稱:月桂酰胺

CAS:1120-16-7

分子式:C12H25NO

分子量: 199.33

InChI:InChI=1S/C12H25NO/c1-2-3-4-5-6-7-8-9-10-11-12(13)14/h2-11H2,1H3,(H2,13,14)

InChIKey: ILRSCQWREDREME-UHFFFAOYSA-N

Smiles:C(N)(=O)CCCCCCCCCCC

  • 圖譜
    Mass

    MS-NW-0626
lauramide
C12H25NO            (Mass of molecular ion:    199)


       Source Temperature: 180 °C
   Sample Temperature: 130 °C
   Direct, 75 eV


          18.0       1.9
      27.0       4.9
      28.0       1.3
      29.0       8.5
      39.0       2.8
      41.0      13.3
      42.0       2.7
      43.0      16.0
      44.0      10.2
      55.0       6.6
      56.0       1.6
      57.0       6.0
      59.0     100.0
      60.0       6.3
      69.0       2.8
      71.0       1.6
      72.0      30.9
      73.0       4.9
      83.0       1.6
      86.0       6.1
      97.0       1.2
      98.0       1.3
     100.0       1.8
     114.0       3.7
     115.0       1.0
     128.0       3.4
     156.0       1.5
     199.0       1.0

90 MHz in CDCl3

  • 圖譜

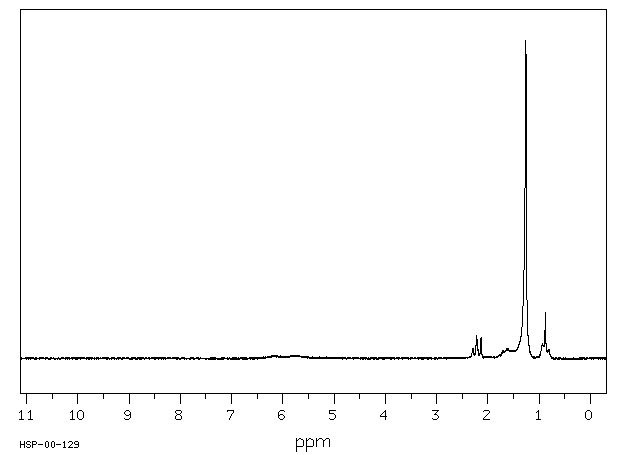

    1H NMR 89.56 MHz
    C12 H25 N O 0.040 g : 0.5 ml CDCl3
    lauramide
    ChemicalStructure
        Assign.     Shift(ppm)

      A             0.883
      B             1.26
      C             1.62
      D             2.20
      E     *1      5.8
      F     *1      6.2


         Hz     ppm     Int.


        198.69   2.219     73
    191.25   2.136     64
    190.75   2.130     65
    126.50   1.413     37
    125.63   1.403     41
    124.63   1.392     47
    124.00   1.385     51
    123.31   1.377     54
    121.94   1.362     64
    112.75   1.259   1000
     83.94   0.938     47
     82.50   0.922     41
     81.88   0.915     41
     78.75   0.880    144

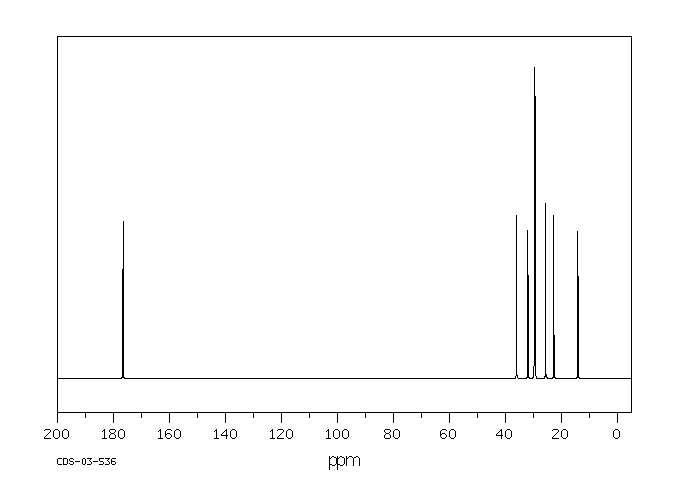

in CDCl3

  • 圖譜

CCl4 solution

  • 圖譜

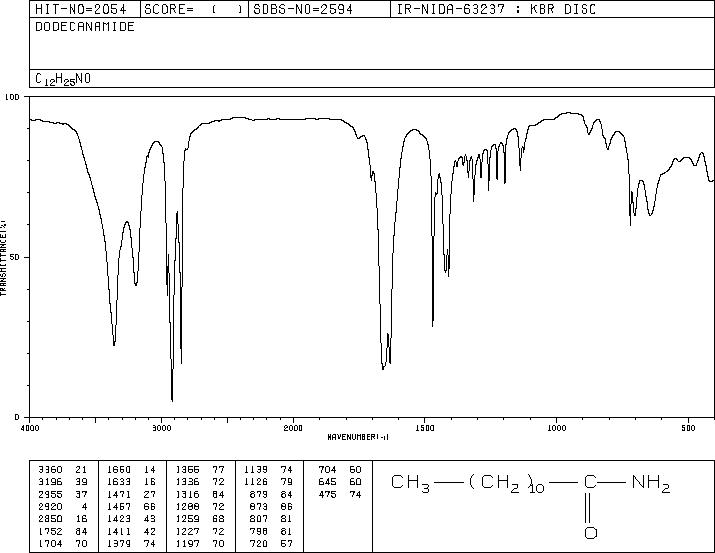

KBr disc

  • 圖譜

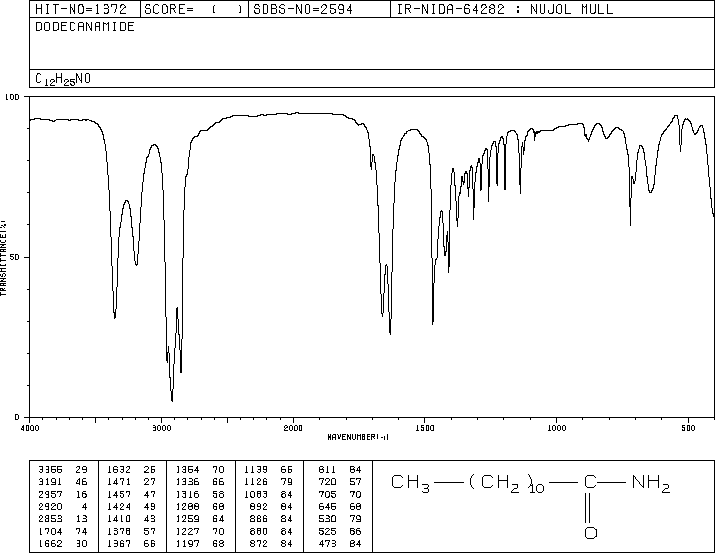

nujol mull

  • 圖譜

×
