111-94-4

3,3'-亞胺二丙腈(111-94-4)核磁圖(1HNMR)

產(chǎn)品名稱:3,3'-亞胺二丙腈

CAS:111-94-4

分子式:C6H9N3

分子量: 123.16

InChI:InChI=1S/C6H9N3/c7-3-1-5-9-6-2-4-8/h9H,1-2,5-6H2

InChIKey: SBAJRGRUGUQKAF-UHFFFAOYSA-N

Smiles:N(CCC#N)CCC#N

  • 圖譜
    Mass

    MS-NW-1305
3,3'-iminodipropionitrile
C6H9N3              (Mass of molecular ion:    123)


       Source Temperature: 260 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV


          15.0       3.6
      18.0       1.5
      26.0       7.5
      27.0       8.8
      28.0      23.6
      29.0       3.8
      30.0      23.4
      38.0       1.2
      39.0       1.9
      40.0       5.1
      41.0       6.9
      42.0      95.7
      43.0      11.6
      51.0       3.0
      52.0       8.1
      53.0       6.2
      54.0      52.2
      55.0       4.7
      56.0       4.8
      57.0       1.0
      66.0       1.1
      67.0       1.4
      81.0       6.1
      82.0       3.0
      83.0     100.0
      84.0       5.3

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C6 H9 N3 0.04 ml : 0.5 ml CDCl3
    3,3'-iminodipropionitrile
    ChemicalStructure
        Assign.     Shift(ppm)

      A             2.96
      B             2.54
      C             1.54


         Hz     ppm     Int.


        273.13   3.050    238
    272.00   3.038    258
    270.06   3.016     37
    265.56   2.966    890
    259.94   2.903    502
    259.31   2.896    531
    233.38   2.606    512
    232.63   2.598    554
    229.69   2.565     38
    228.44   2.551     42
    227.13   2.537   1000
    226.44   2.529    448
    225.69   2.520    377
    222.19   2.481     42
    220.69   2.465    276
    219.50   2.451    271
    137.81   1.539    100

in CDCl3

  • 圖譜

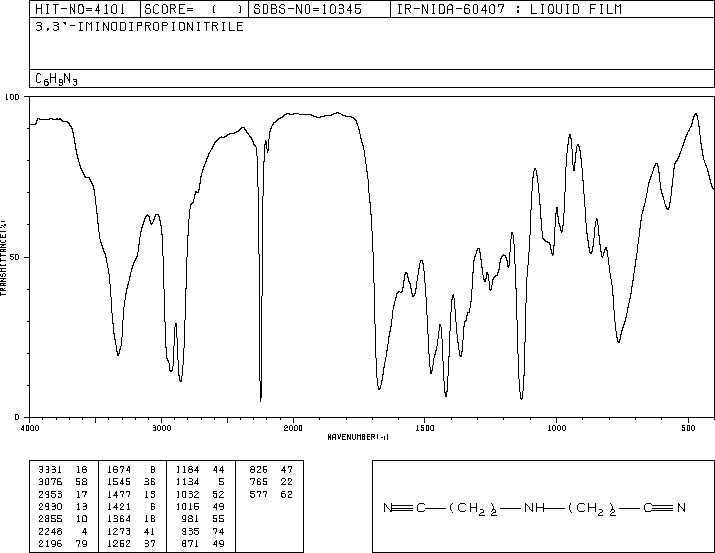

liquid film

  • 圖譜

  • 圖譜

×
