ChemicalBook
English   Japanese   Germany   Korea

105-05-5

1,4-二乙基苯(105-05-5)核磁圖(13CNMR)

產(chǎn)品名稱:1,4-二乙基苯

CAS:105-05-5

分子式:C10H14

分子量: 134.22

InChI:InChI=1S/C10H14/c1-3-9-5-7-10(4-2)8-6-9/h5-8H,3-4H2,1-2H3

InChIKey: DSNHSQKRULAAEI-UHFFFAOYSA-N

Smiles:C1(CC)=CC=C(CC)C=C1

  • 圖譜

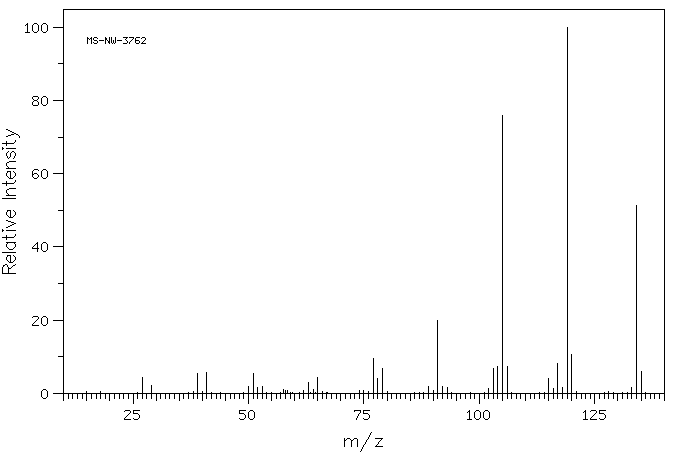

    Mass

    MS-NW-3762
p-diethylbenzene
C10H14              (Mass of molecular ion:    134)


       Source Temperature: 260 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV


          27.0       4.3
      29.0       2.1
      39.0       5.4
      41.0       5.6
      50.0       2.0
      51.0       5.3
      52.0       1.5
      53.0       1.9
      57.5       1.1
      63.0       2.9
      64.0       1.1
      65.0       4.2
      77.0       9.5
      78.0       4.0
      79.0       6.7
      89.0       1.8
      91.0      20.0
      92.0       1.8
      93.0       1.7
     102.0       1.3
     103.0       6.8
     104.0       7.4
     105.0      75.8
     106.0       7.3
     115.0       4.1
     116.0       1.3
     117.0       8.1
     118.0       1.7
     119.0     100.0
     120.0      10.6
     133.0       1.7
     134.0      51.4
     135.0       6.0

90 MHz in CDCl3

  • 圖譜

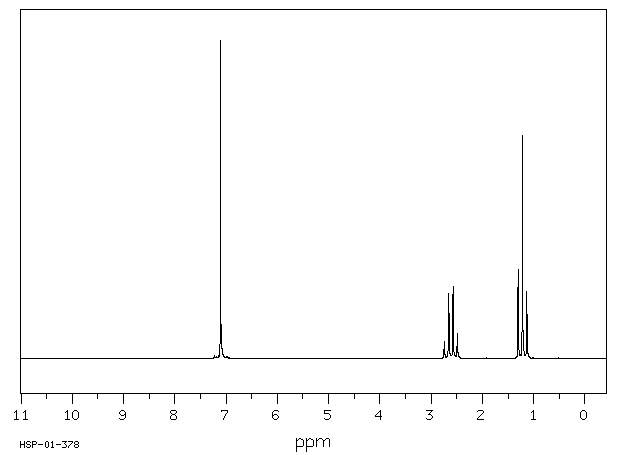

    1H NMR 89.56 MHz
    C10 H14 0.04 ml : 0.5 ml CDCl3
    p-diethylbenzene
    ChemicalStructure
        Assign.     Shift(ppm)

      A             7.11
      B             2.605
      C             1.22


         Hz     ppm     Int.


        636.44   7.107   1000
    245.38   2.740     52
    237.75   2.655    206
    230.19   2.571    228
    222.75   2.488     79
    116.63   1.303    279
    109.31   1.221    701
    101.50   1.134    210

in CDCl3

  • 圖譜

liquid film

  • 圖譜

4880 A,200 M,liquid

  • 圖譜

×
