Back ChemicalBook Home>CAS DataBase List>37910-77-3More Spectrum> ERUCIC ACID ETHYL ESTER(37910-77-3) IR1

37910-77-3

ERUCIC ACID ETHYL ESTER(37910-77-3) IR1

Molecular FormulaC24H46O2

Molecular Weight366.62

InChIInChI=1S/C24H46O2/c1-3-5-6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24(25)26-4-2/h11-12H,3-10,13-23H2,1-2H3/b12-11-

InChIKey WFZQLUSOXHIVKL-QXMHVHEDSA-N

SmilesC(OCC)(=O)CCCCCCCCCCC/C=C\CCCCCCCC

  • ERUCIC ACID ETHYL ESTER(37910-77-3) IR1

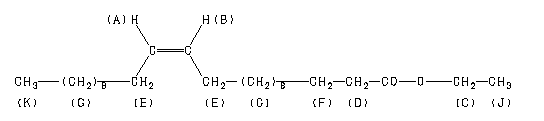

        Assign.     Shift(ppm)

      A     *1      5.37
      B     *1      5.32
      C             4.118
      D             2.29
      E             2.01
      F             1.61
      G             1.27
      J             1.255
      K             0.88

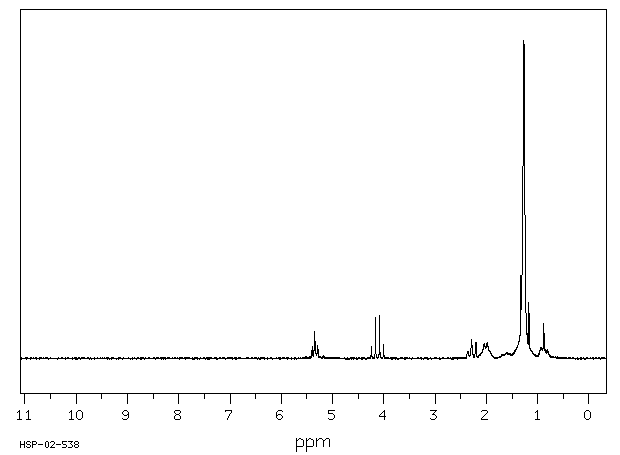

    Spectral Code: 1H NMR : 90 MHz in CDCl3

  • ERUCIC ACID ETHYL ESTER(37910-77-3) IR1


           ppm   Int.  Assign.

      173.80   303      1
      129.91   557      2
       60.11   258      3
       34.42   262      4
       32.00   294      5
       29.85   656      6
       29.63   846      7
                        8 *
       29.41  1000      9 *
                       10
       29.24   416     11
       27.28   516     12
       25.06   290     13
       22.75   317     14
       14.28   249     15
       14.13   271     16
    Spectral Code: 13C NMR : in CDCl3

  • ERUCIC ACID ETHYL ESTER(37910-77-3) IR1

    Spectral Code: IR : liquid film

ERUCIC ACID ETHYL ESTER(37910-77-3) IR1 Atlas of Related Products

×
