8-BROMO-2-CHLORO-11-ETHYL-5-METHYL-5H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6(11H)-ONE synthesis
- Product Name:8-BROMO-2-CHLORO-11-ETHYL-5-METHYL-5H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6(11H)-ONE
- CAS Number:189393-17-7
- Molecular formula:C14H12BrClN4O
- Molecular Weight:367.63

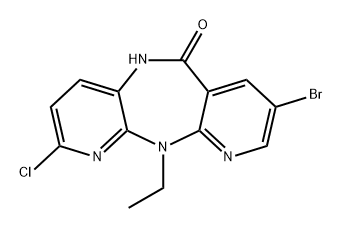

![6H-Dipyrido[3,2-b:2',3'-e][1,4]diazepin-6-one, 8-bromo-2-chloro-11-ethyl-5,11-dihydro-](/CAS/20210305/GIF/189393-15-5.gif)
189393-15-5
0 suppliers
inquiry
189393-17-7
4 suppliers
inquiry
Yield:189393-17-7 94%
Reaction Conditions:
with NaH in N,N-dimethyl-formamide;
Steps:
II.e e
e 8-Bromo-2-chloro-5,11-dihydro-11-ethyl-5-methyl-6H-dipyrido[3,2-b:2',3'-e][1,4]diazepin-6-one Solid NaH (60% oil dispersion, 3.46 g, 86.1 mmol) was added over 30 min to a solution of 8-bromo-2-chloro-5,11-dihydro-11-ethyl-6H-dipyrido[3,2-b:2',3'-e][1,4]diazepin-6-one (23.4 g, 66.3 mmol) in DMF (220 mL) at 50° C. The mixture was stirred at 50° C. for 1 h then was allow to cool to room temperature. The mixture was poured into water (1 L) and the resulting suspension was filtered. The solid was successively washed with water and hexane then dried under reduced pressure to give the title compound (23.0 g, 94% yield).
References:
US2002/28807,2002,A1
