Crystal structure of Aluminum antimonide

Dec 16,2024

Aluminum antimonide (AlSb) is a Group III-V semiconductor and photovoltaic material. It can be alloyed with other III-V semiconductor materials to produce aluminium arsenic antimonide, aluminium gallium antimonide and aluminium indium antimonide, which are widely used in photodetectors, solar cell devices, LEDs and optoelectronic devices.

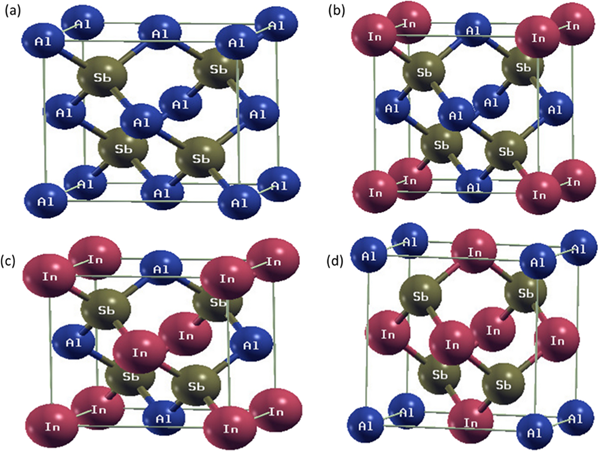

The lattice parameter values of AlSb, Al0.75In0.25Sb, Al0.5In0.5Sb and Al0.25In0.75Sb are 6.236A?, 6.352A?, 6.460A? and 6.6619A? , respectively. In addition, AlSb has a zinc cordite and sphalerite structure and crystallises in the cubic F?43m space group. Al3? is bonded to four equivalent Sb3- atoms to form the co-angled AlSb? tetrahedron. All Al-Sb bonds are 2.68 ?. Sb3- is bonded to four equivalent Al3? atoms to form the co-angled SbAl? tetrahedra.

ALUMINUM ANTIMONIDE

References:

[1] SHAFQAT NABI. First-principles calculations to investigate structural, electronic and optical properties of In-doped aluminium antimonide alloy for optoelectronic applications[J]. Optical and Quantum Electronics, 2023, 55 9. DOI:10.1007/s11082-023-05091-2.
